Operating voltage

120-260V AC/DC¹ (min. 110V, max. 265V)

Heating element

PTC resistor - temperature limiting

Surface temperature

< +80°C (+176°F), except upper protective grille

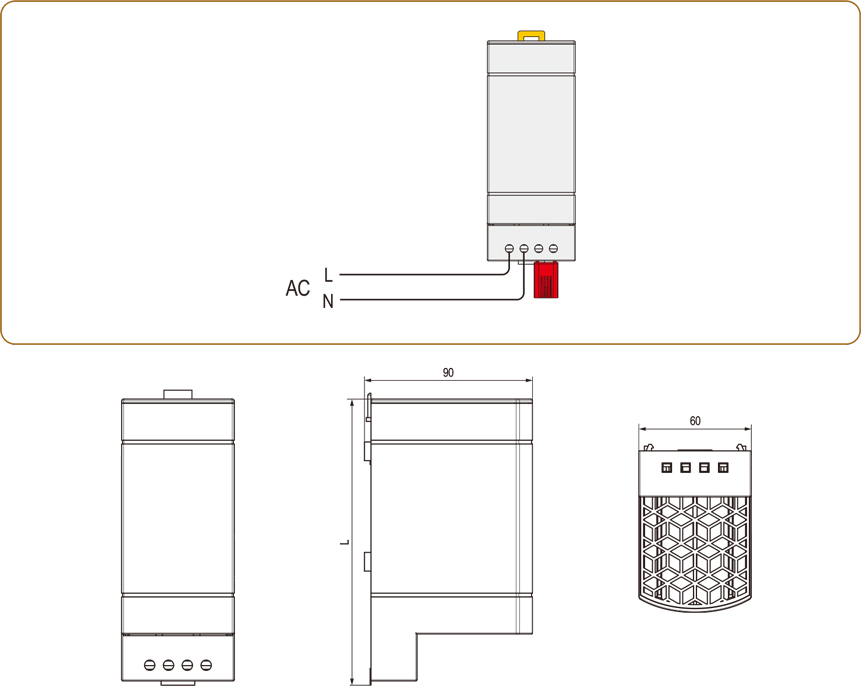

Connection

4-pole terminal 2.5mm², torque 0.8Nm max.

Casing

plastic according to UL94 V-0, black

Mounting

clip for 35mm DIN rail, EN 60715

Fitting position

vertical airflow (air outlet up, connection on bottom)

Operating/Storage temperature

-45 to +70°C (-49 to +158°F)

Operating/Storage humidity

max. 90% RH (non-condensing)

Protection type/Protection class

IP20 / II (double insulated)

Note

other voltages on request

152T01

50W

59 °F (15 °C)

41 °F (5 °C)

110 x 60 x 90mm

0.3kg

152T02

50W

77 °F (25 °C)

59 °F (15 °C)

110 x 60 x 90mm

0.3kg

152T03

100W

59 °F (15 °C)

41 °F (5 °C)

150 x 60 x 90mm

0.4kg

152T04

100W

77 °F (25 °C)

59 °F (15 °C)

110 x 60 x 90mm

0.3kg

152T05

150W

59 °F (15 °C)

41 °F (5 °C)

110 x 60 x 90mm

0.4kg

152T06

150W

77 °F (25 °C)

59 °F (15 °C)

150 x 60 x 90mm

0.4kg
